Splices

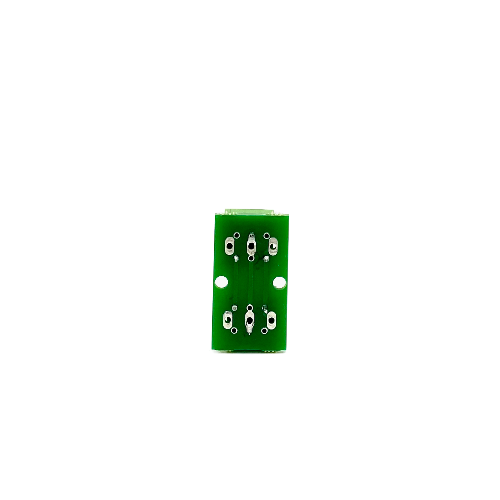

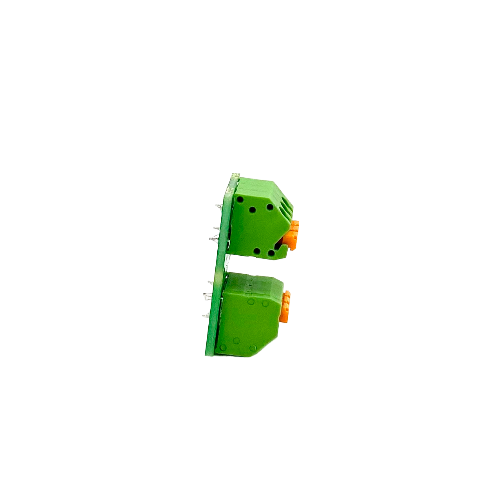

QC3SPL-C — 3 Position Splice, Compression
3 position quick splice designed for DMX or other data/audio applications. Dual, back-to-back 3 position push-in style terminals for quickly splicing field wiring. Small and low profile, the QC3SPL easily fits inside common heat-shrink tubing diameters. Also has 2 holes for 4-40 screws allowing solid attachment to non-metallic surfaces.
SPECIFICATIONS
| Terminals | Dual 3 Position 3.5mm push-in compression |
| Dimensions | 31 × 17 × 12 mm |
| Mounting | 2× 4-40 screw holes |
| Best For | DMX, RS485, audio, low voltage data |
Contact for Pricing & Availability
Our team will respond promptly with current pricing, lead times, and volume options.
